Super quick 10 t auto collision repair machine that works also as 3 t lift

Super-fast 10 t auto collision repair machine that also acts as a 3 t lift

VERSATILE COMBINATION OF AUTO FRAME MACHINE/LIFT

Collision repair systems

Autorobot B15

Autorobot B15 is a patented lift/frame machine combination designed to meet the various demands of the body shop. The full length 10 ton pulling power collision repair machine provides great productivity for both small and large repairs of new car body structures. Autorobot B15 achieves a very wide operational level with its patented ramp lift solution which makes it work as a lifting platform in various jobs like damage analysis, collision repair, measuring and disassembly/installation of vehicle parts. Autorobot B15 functions with remote control, which speeds up the collision repair process and makes it easy and comfortable. Versatile lifting features allow to lift the vehicle as such standing on wheels on the ramps, or either lift it with lift pads from chassis and leave wheels hanging free.

Autorobot B15/B15 Super features and ares of use

Areas of use

Autorobot B15 collision repair system possesses versatile lifting features: lift on wheels standing on the ramps or on chassis pads when you need to work on the wheel assembly. The versatility of B15 means better productivity for the body shop, when almost all jobs in the collision repair process, except painting, can be done without moving the vehicle from one place to another and there is no need to get a separate lift.

B15 has a major role in the following car body repair tasks:

  • Damage analysis (with Autorobot EzCalipre)
  • Disassembling vehicle parts before straightening
  • Straightening of small and large damage, 10 t power (assisted by Autorobot EzCalipre)
  • Assembling work after painting
  • Other standard repair jobs like with any car post lifts

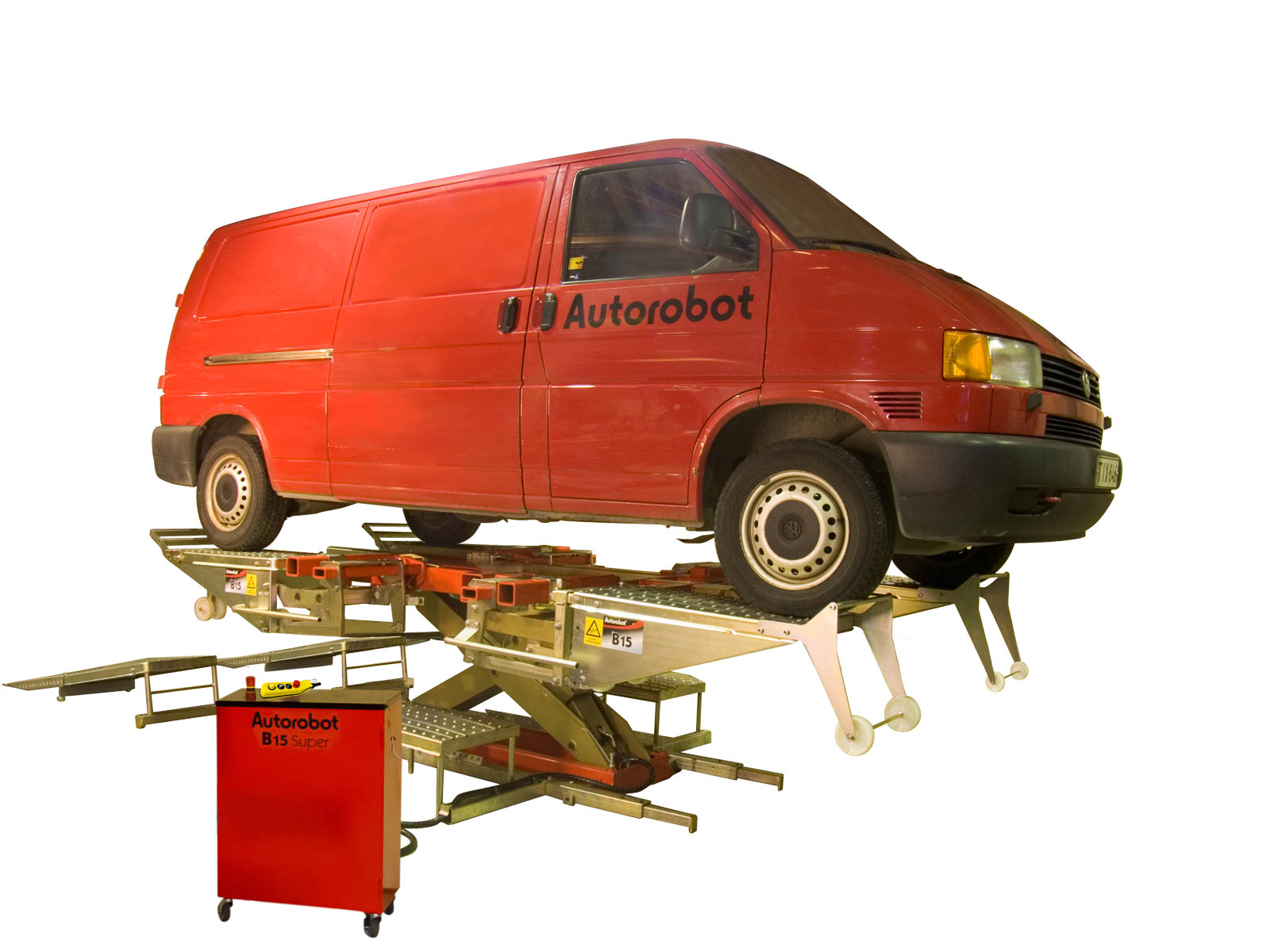

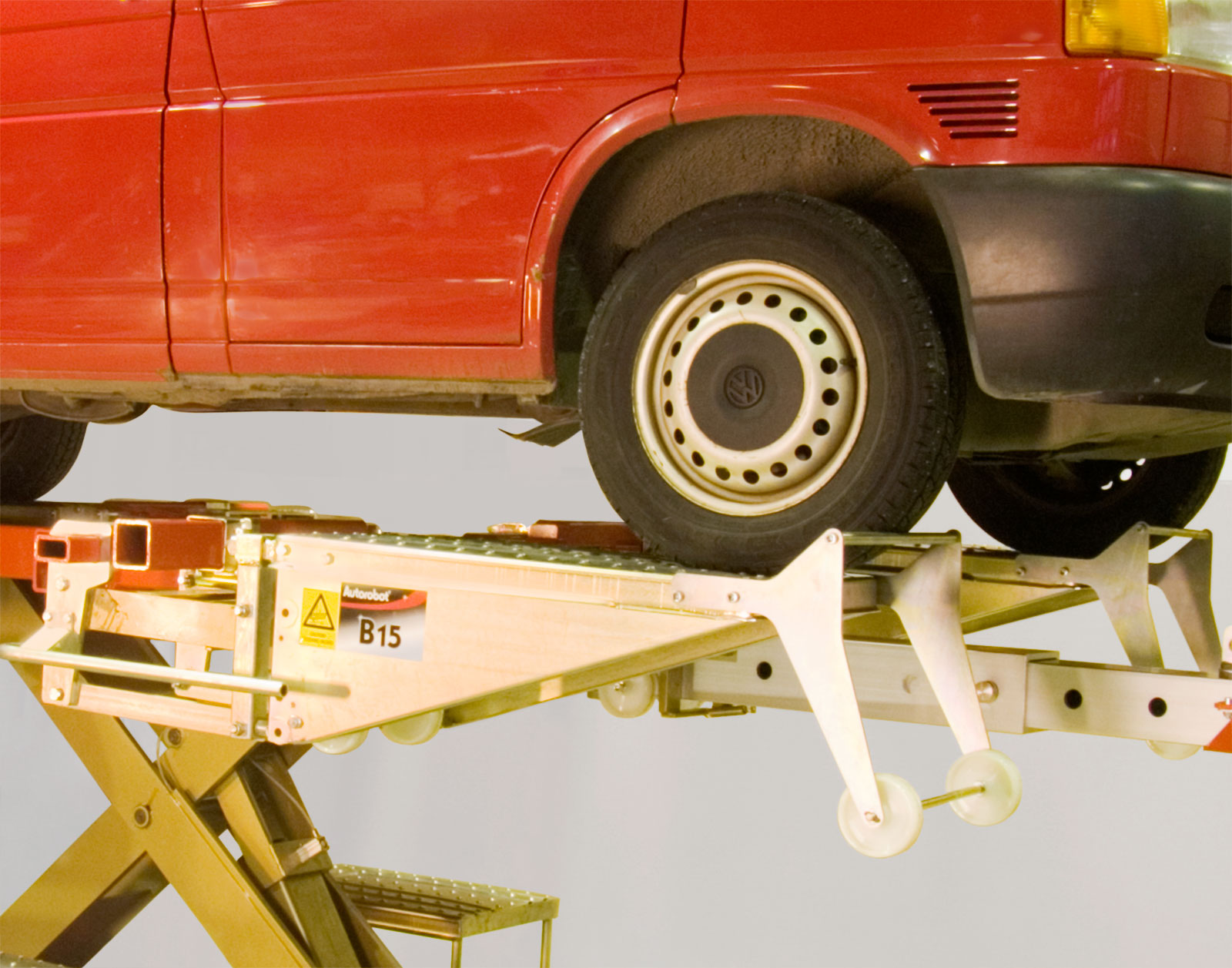

  • Lifting vehicles on wheels like with any drive-on car lift
  • Lifting vehicles on lift pads under the car frame – leaves the wheels hanging free

Technical features

Lift capacity: 3000 kg / 6600 lb
Lifting height: 1.5 m / 4.92 ft
Lifting time: 31 s
Pulling force: Approx. 10 t
Maximum vehicle length: 5.5 m / 18 ft
Required Power: 380V + air pressure
Required floor space: 4.5 x 7 m /14.8 x 23 ft (with drive-on ramps attached)
Weight (approx.): 1400 kg / 3086 lbs
Remote-control: Cable/wireless

Autorobot B15 Super Collision repair system and lift

Autorobot B15 Super Collision repair system and lift

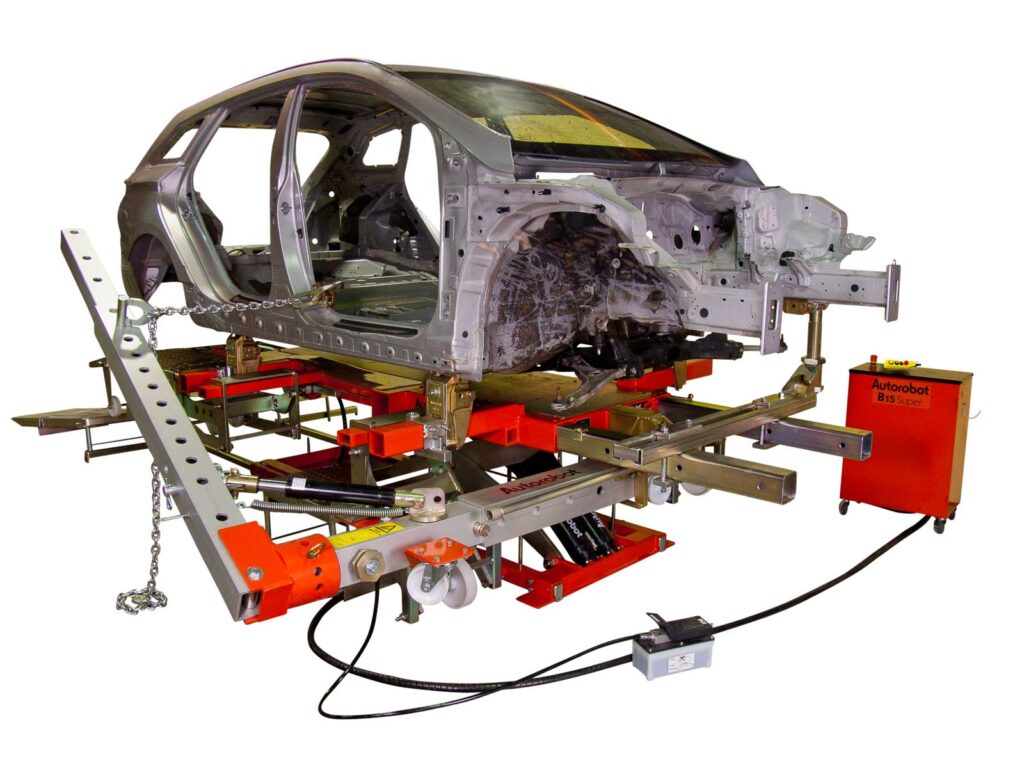

Autorobot B15 Super collision repair system is equipped with remote-controlled hydraulics that enables super quick vehicle fastening and lifting.New hydraulics technique allows quick mounting and unmounting of vehicles with different length. The length adjustment of sill clamps is performed hydraulically by pushing remote control button.

Use as a lift

When using Autorobot B15 Super, the saving in time is remarkable, as all jobs can be done on the same bench. B15 Super is equipped with versatile lifting features: lifting on wheels and on lift pads, leaving the wheels hanging free. This makes Autorobot B15 Super the most productive multipurpose bench for the body shop.

The versatility of B15 Super means better productivity for the body shop, when almost all jobs in the straightening process, except painting, can be done without moving the vehicle from one place to another and there is no need to get a separate lift.

Autorobot B15 – video

Watch how Autorobot B15 collision repair system works in auto frame repair work.

Excellent match with this product:

Autorobot B15 Super

Uuden hydraulitekniikan avulla eripituisten autojen kiinnitys ja irrotus onnistuu nopeasti. Alustakiinnikkeiden pituussäätö toteutetaan hydraulisesti painamalla kauko-ohjaimen nappia.

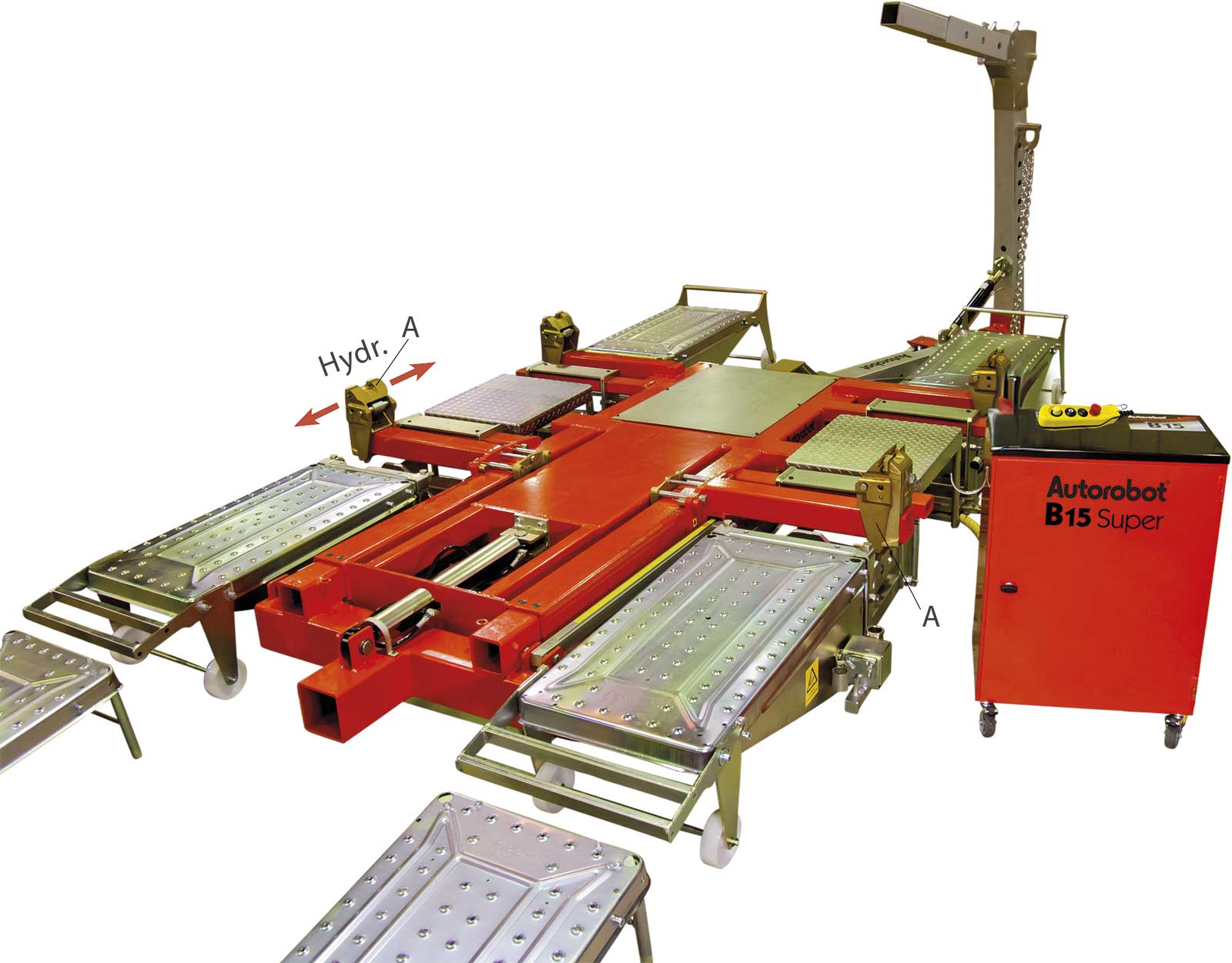

New hydraulics technique allows quick mounting and unmounting of vehicles with different length. The length adjustment of the sill clamps (A) is performed hydraulically just by pushing remote control button (B).
Erikoisalumiinista valmistetulla oikaisupuomilla saavutetaan koko auton korin oikaisu, joka etsii vertaistaan. Vetokulman muutos on helppoa ja nopeaa.

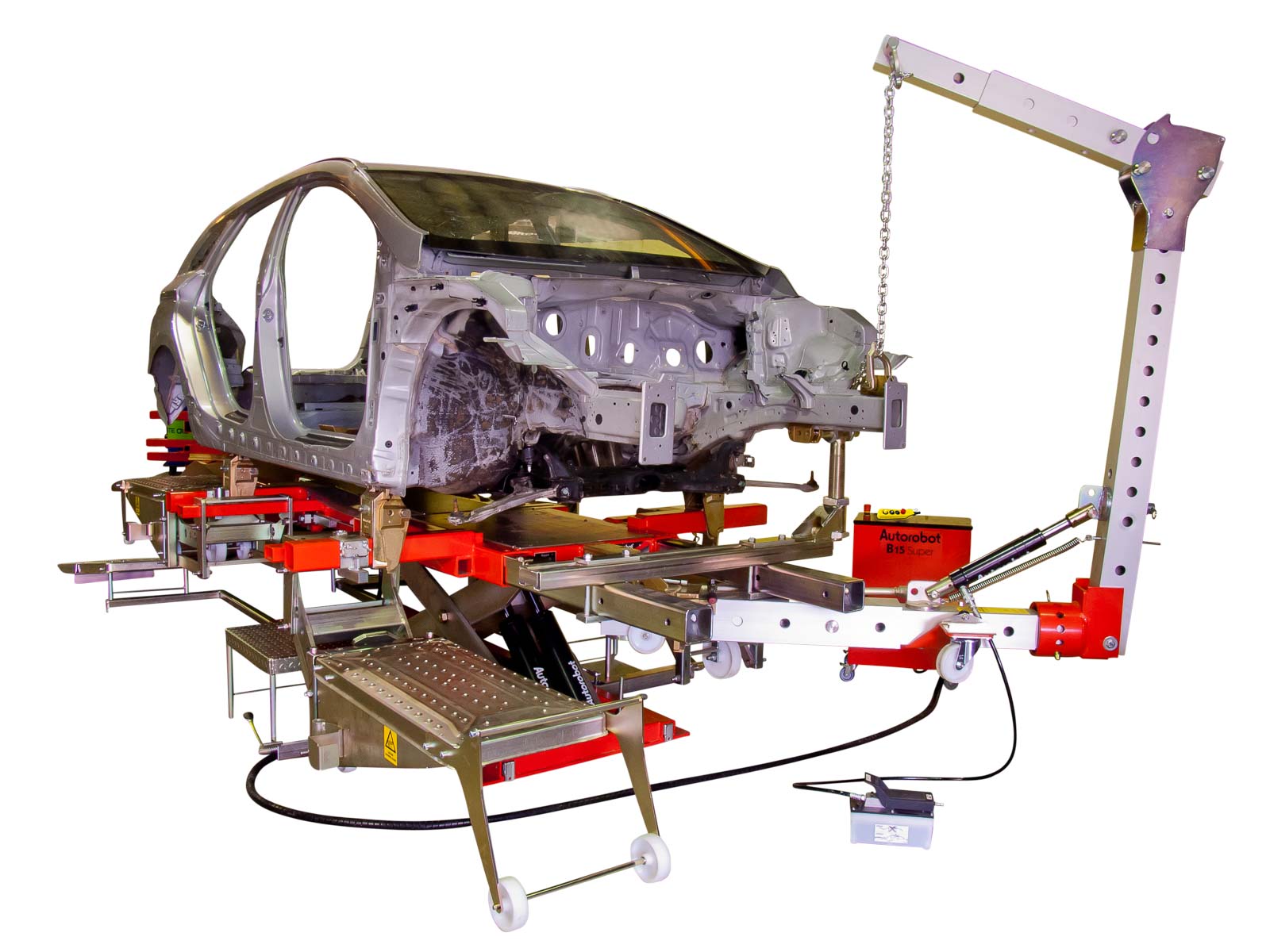

Straightening tower made of special aluminium enables straightening of the entire car body, which is unique. Changing of pulling angle is quick and easy.
Oikaisutyötä nopeuttaa mittalaitteen antama tieto, joka tässä tapauksessa kertoo, miten paljon runkoaisaa on vedettävä alaspäin.
The information given by measuring system speeds up the collision repair work and tells how much the box section must be pulled downwards.
Autorobot B15 Superilla saadaan tehokas oikaisu myös nykyisiin suurlujuusrunkoihin. Apuna tuentajärjestelmä (lisäväline).

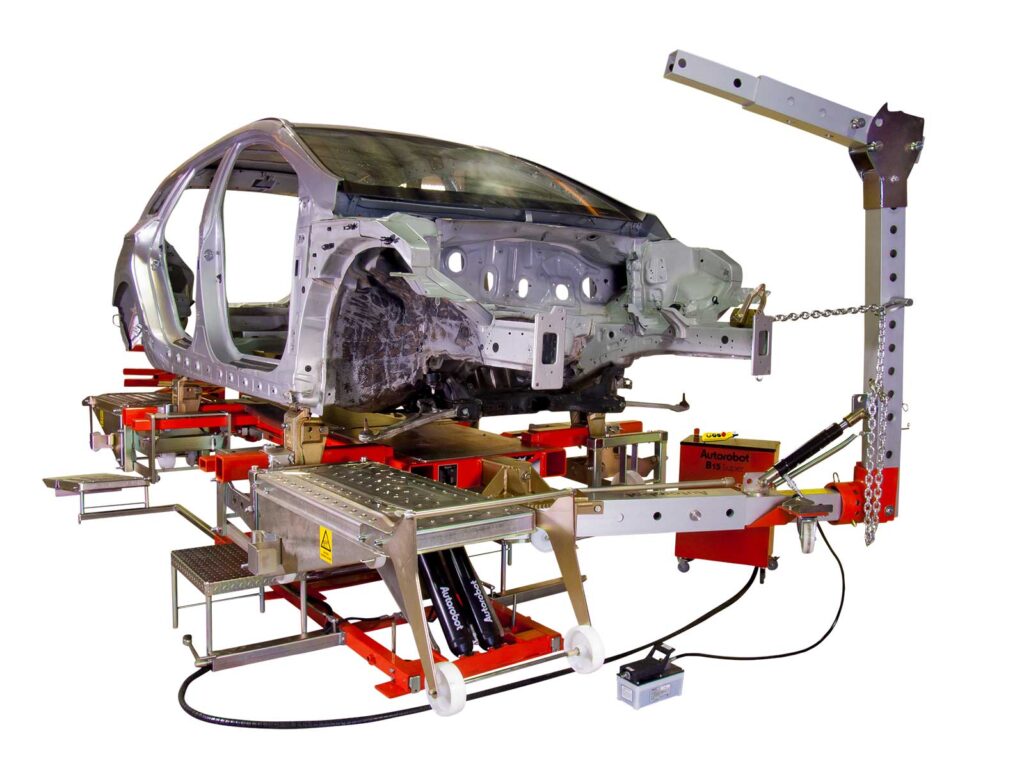

Autorobot B15 Super allows efficient straightening also to modern high tensile steel box sections assisted by support system (accessory).
Autorobot C2 edustaa modernia tekniikkaa varustettuna korkeussäädettävillä pyöräpukeilla. Hydrauliikan ohjaukseen voi valita langallisen tai langattoman kauko-ohjauksen.
