Quick pull column

New, quick vehicle pull-support straightening method for all car body repair needs.

NEW! Quick pull column

Car body repair

VEHICLE PULL-SUPPORT STRAIGHTENING METHOD

The pull/support method focuses the straightening forces precisely on the
damaged area. This significantly saves time in fastening the vehicle and reduces the need for car-specific fasteners.

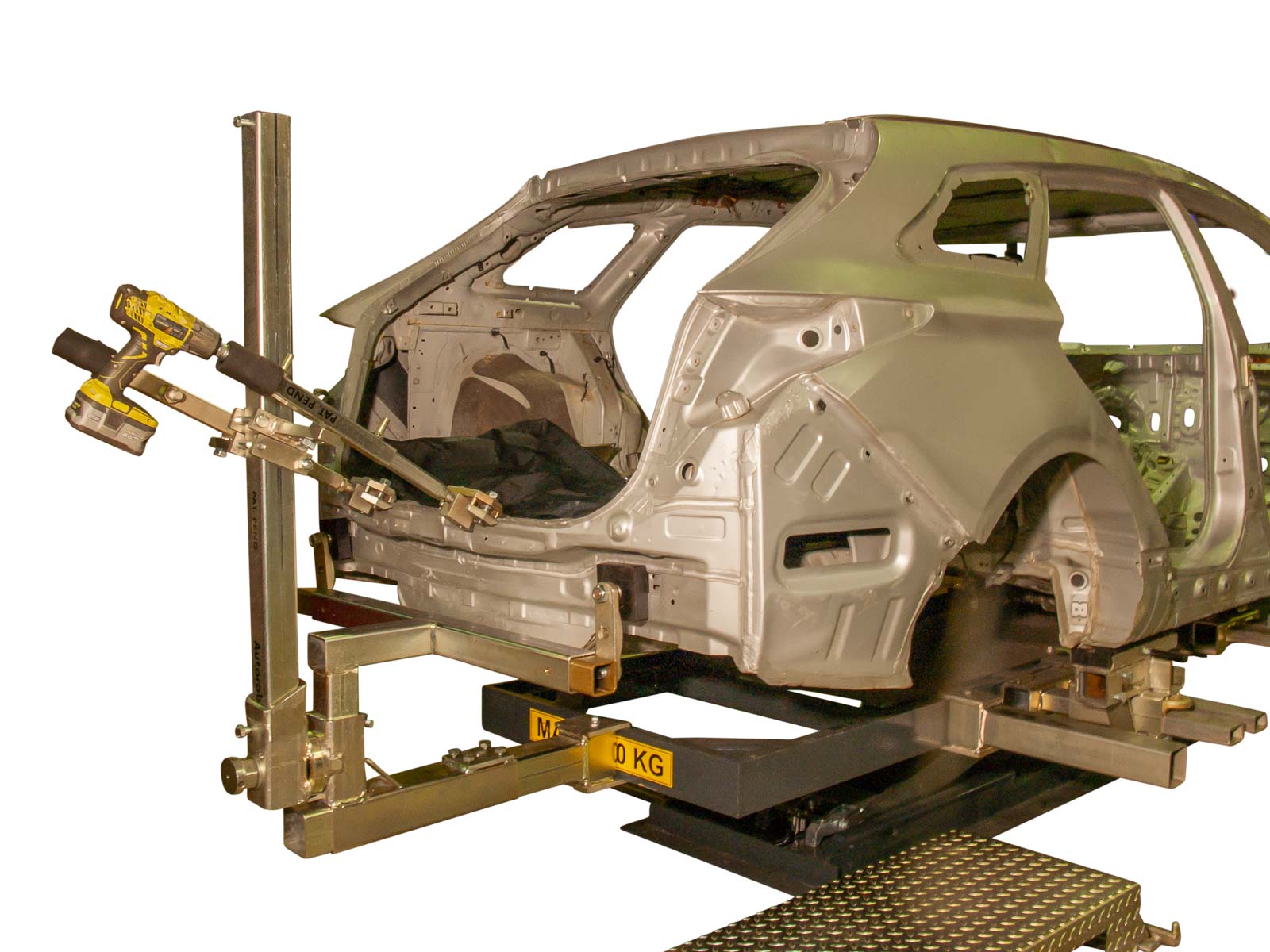

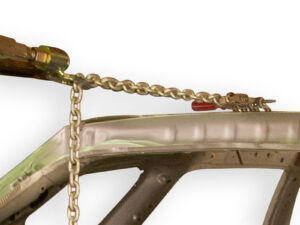

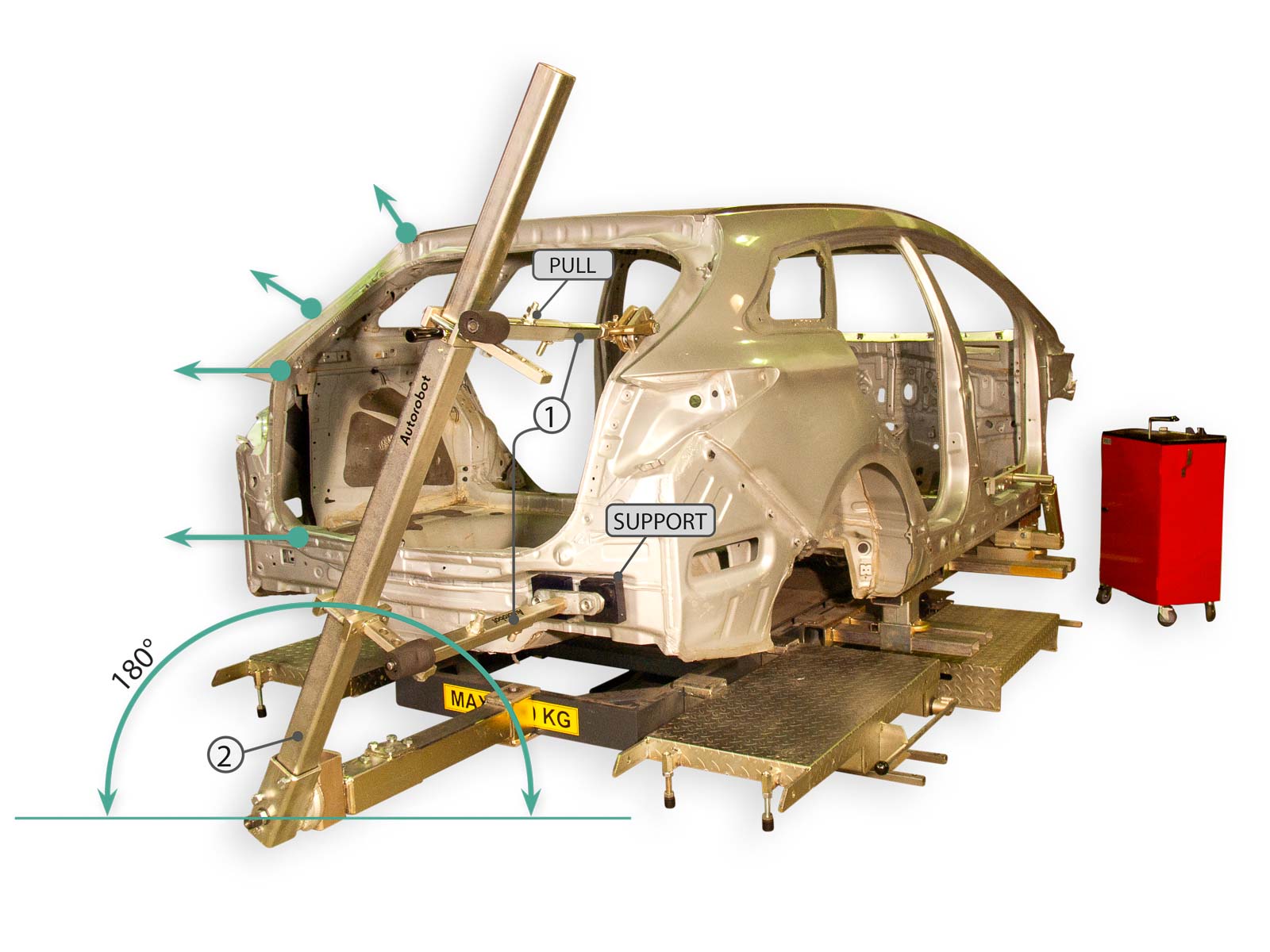

Straightening the rear of the car

Straightening the rear of the car

SET A

Straightening the front, rear, and side structures of the car is excellently performed with set A. It is compatible with all Autorobot straightening benches and most other collision repair systems with a separate beam adapter.

The quick usability of set A is enabled by the turning pull column which can be steplessly locked in place using a friction locking mechanism. Straightening tasks and the necessary support are managed with the straightening unit , suitable for both pulling and supporting. The system is powered with a power tool available in multiple power levels, e.g., 400 W: pull/push 2000 kg, 800 W: pull/push about 3500 kg.

The new method is patent pending.

The turning pull column can be steplessly locked in place using a friction locking mechanism.

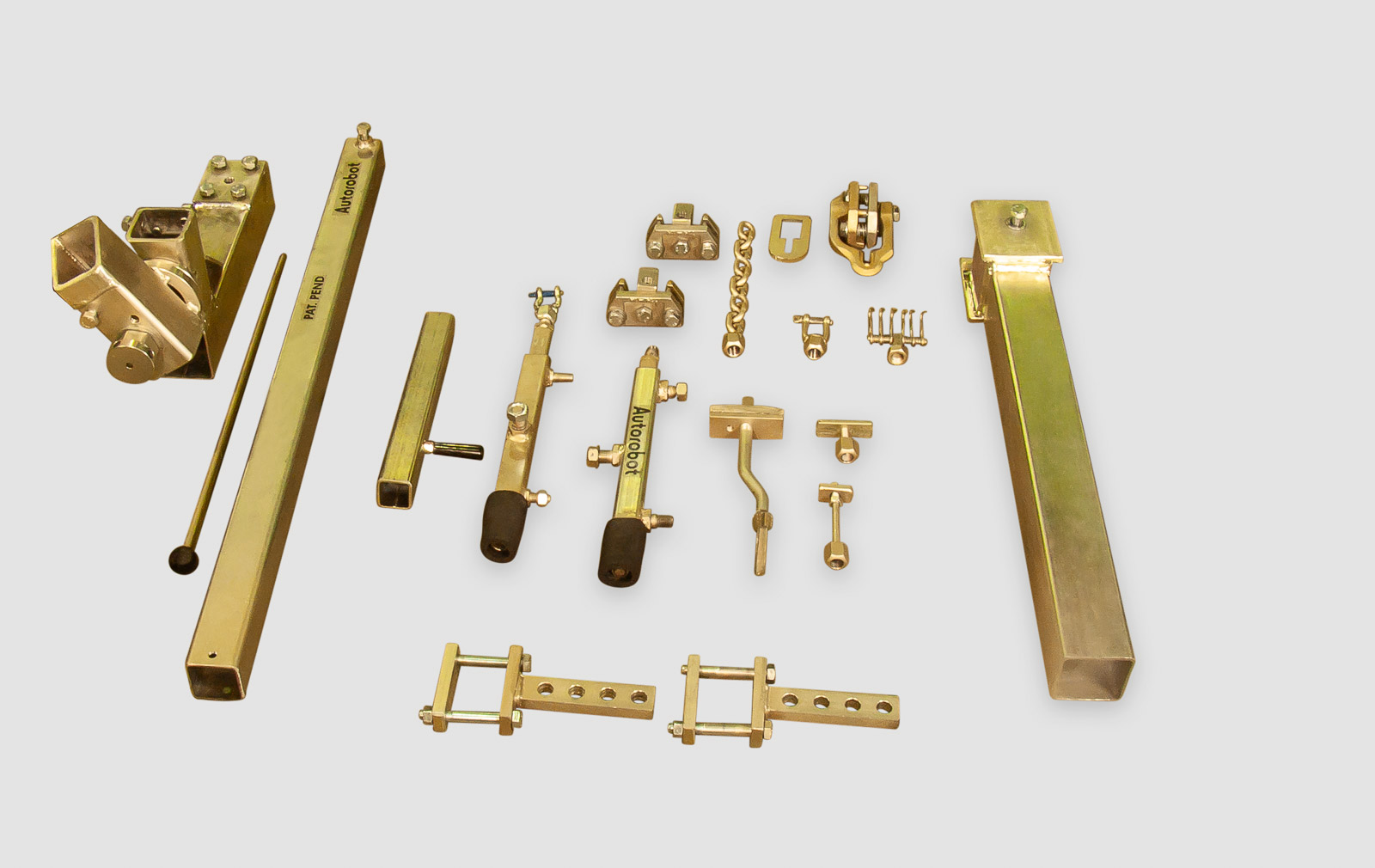

Set A.

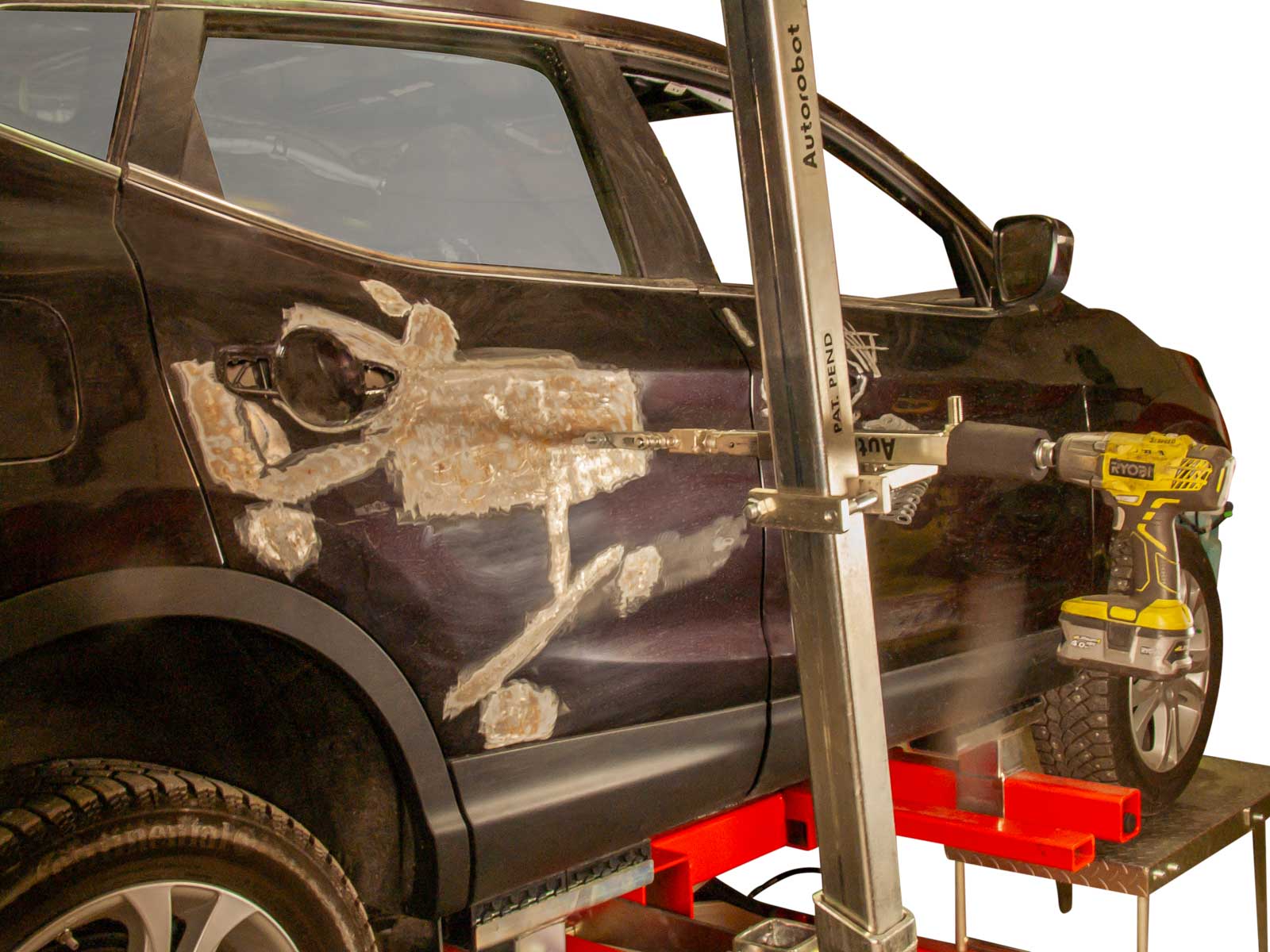

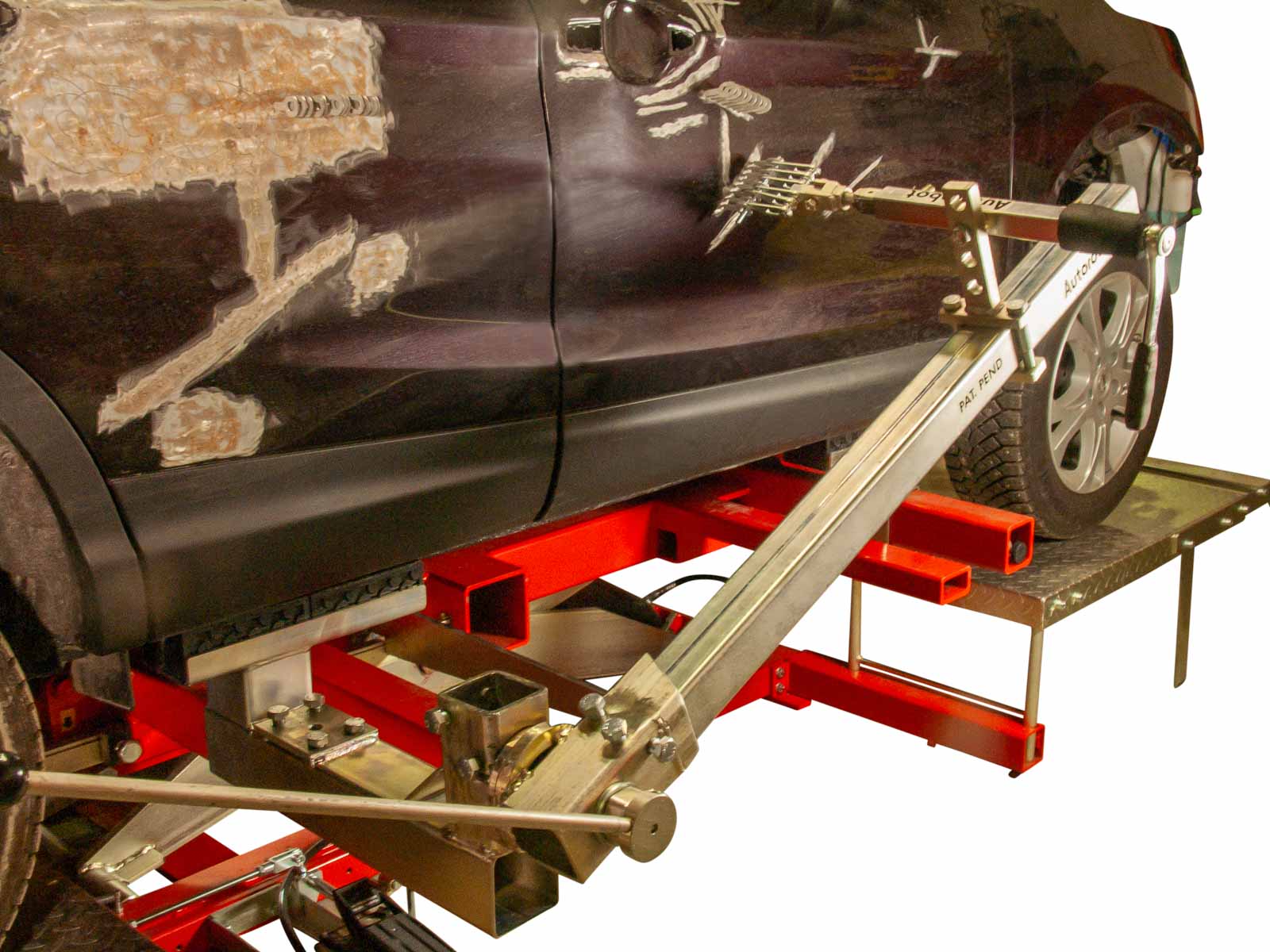

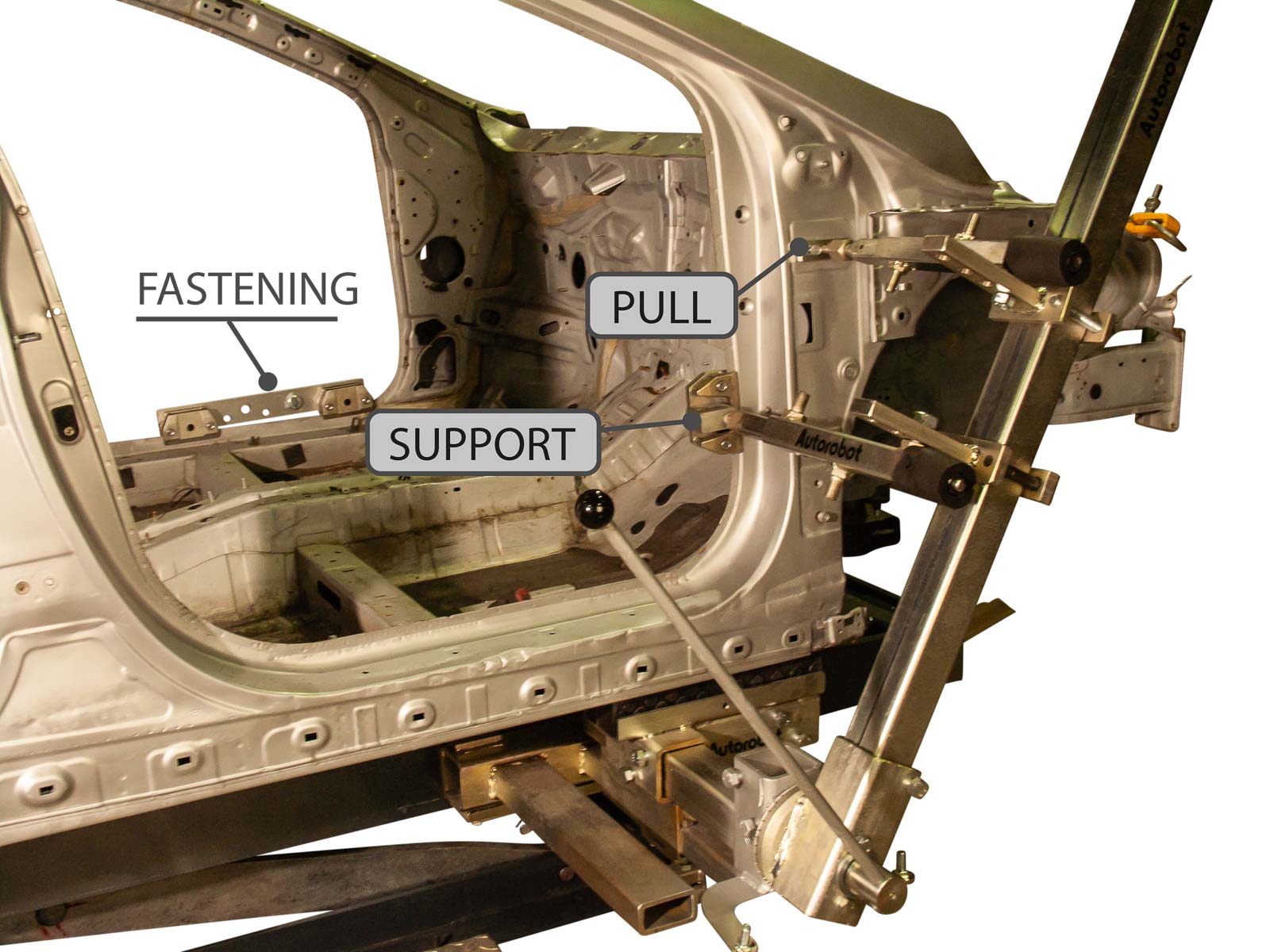

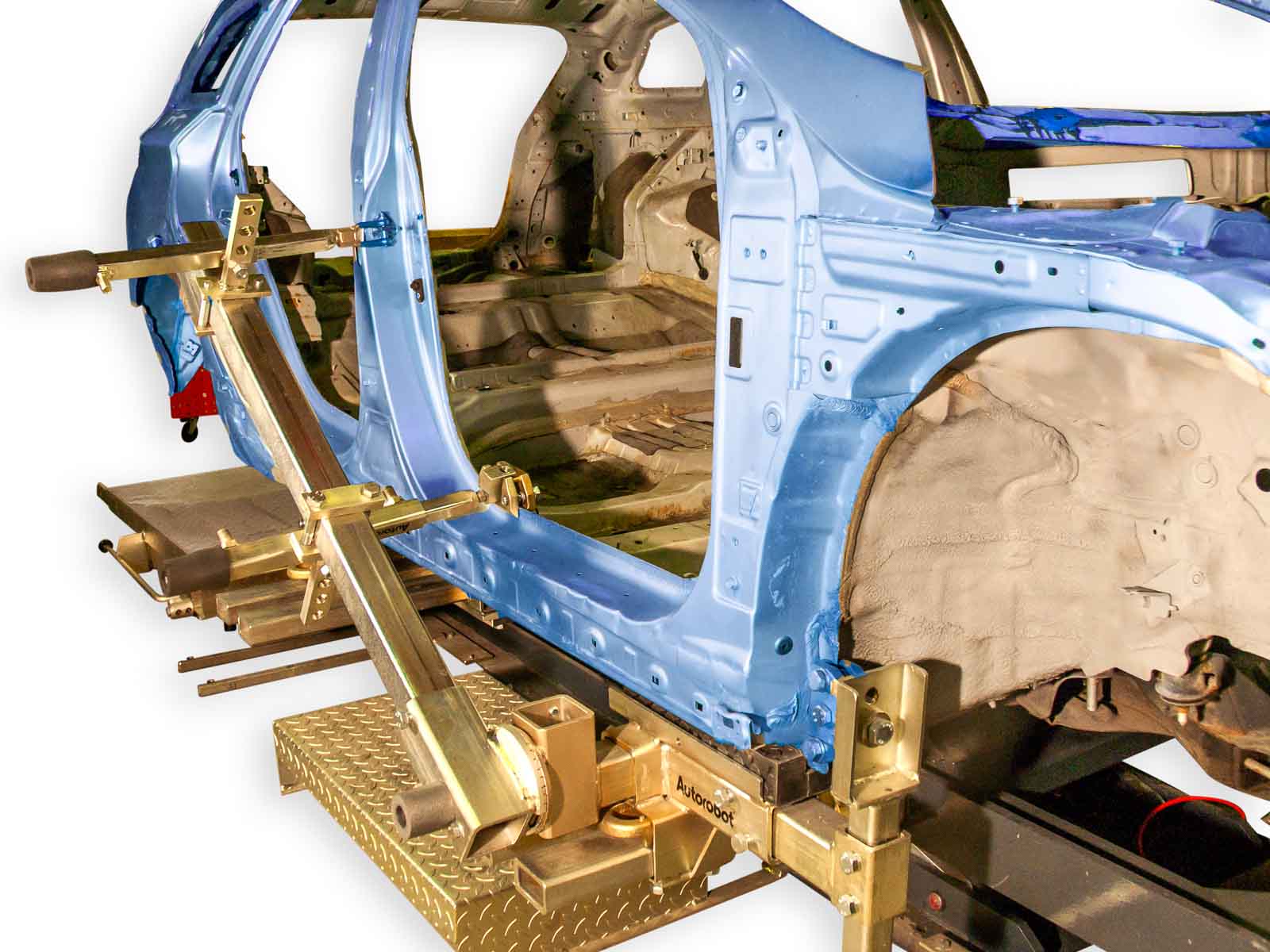

Straightening the side structure

Straightening the side structure

SET A

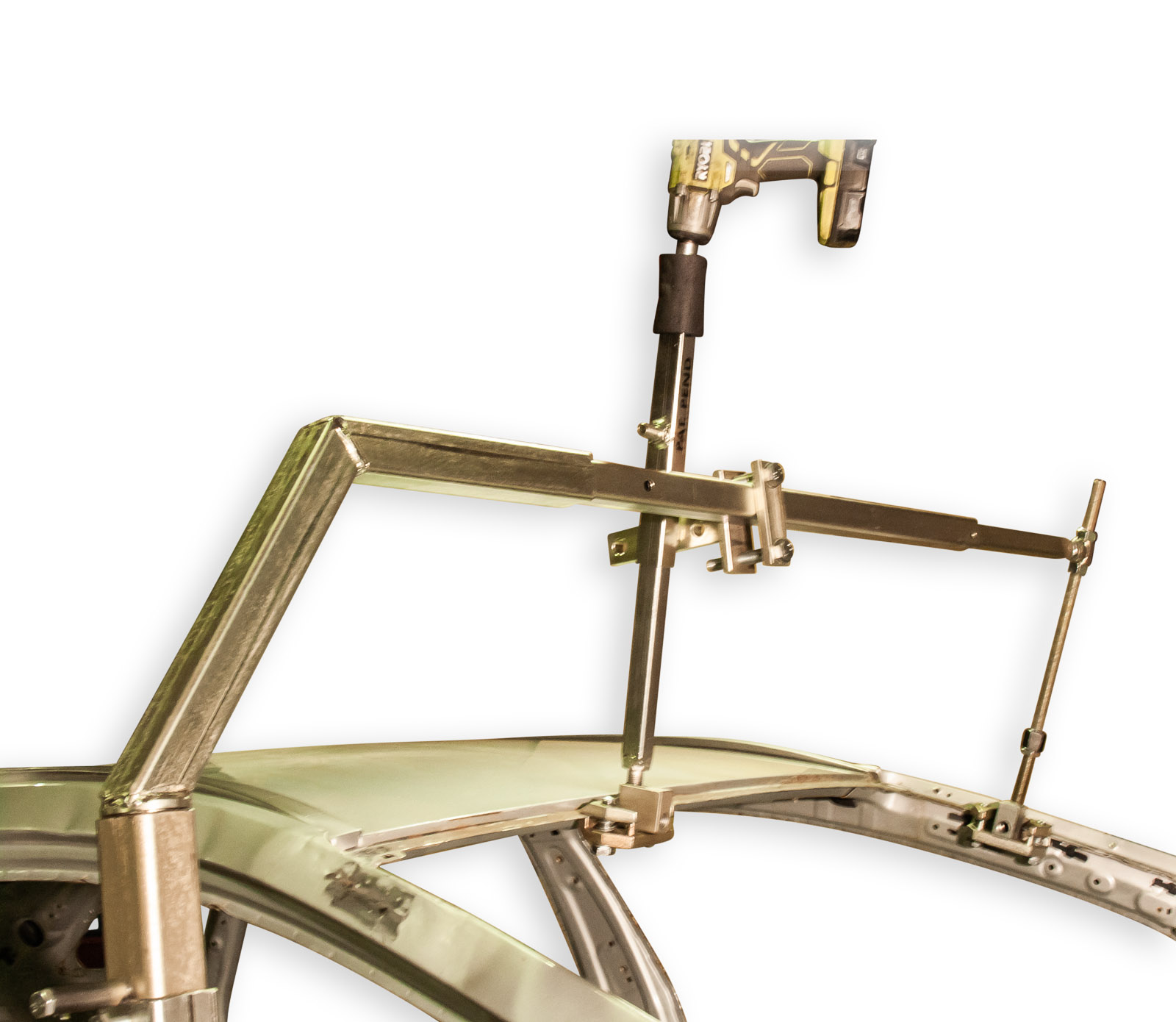

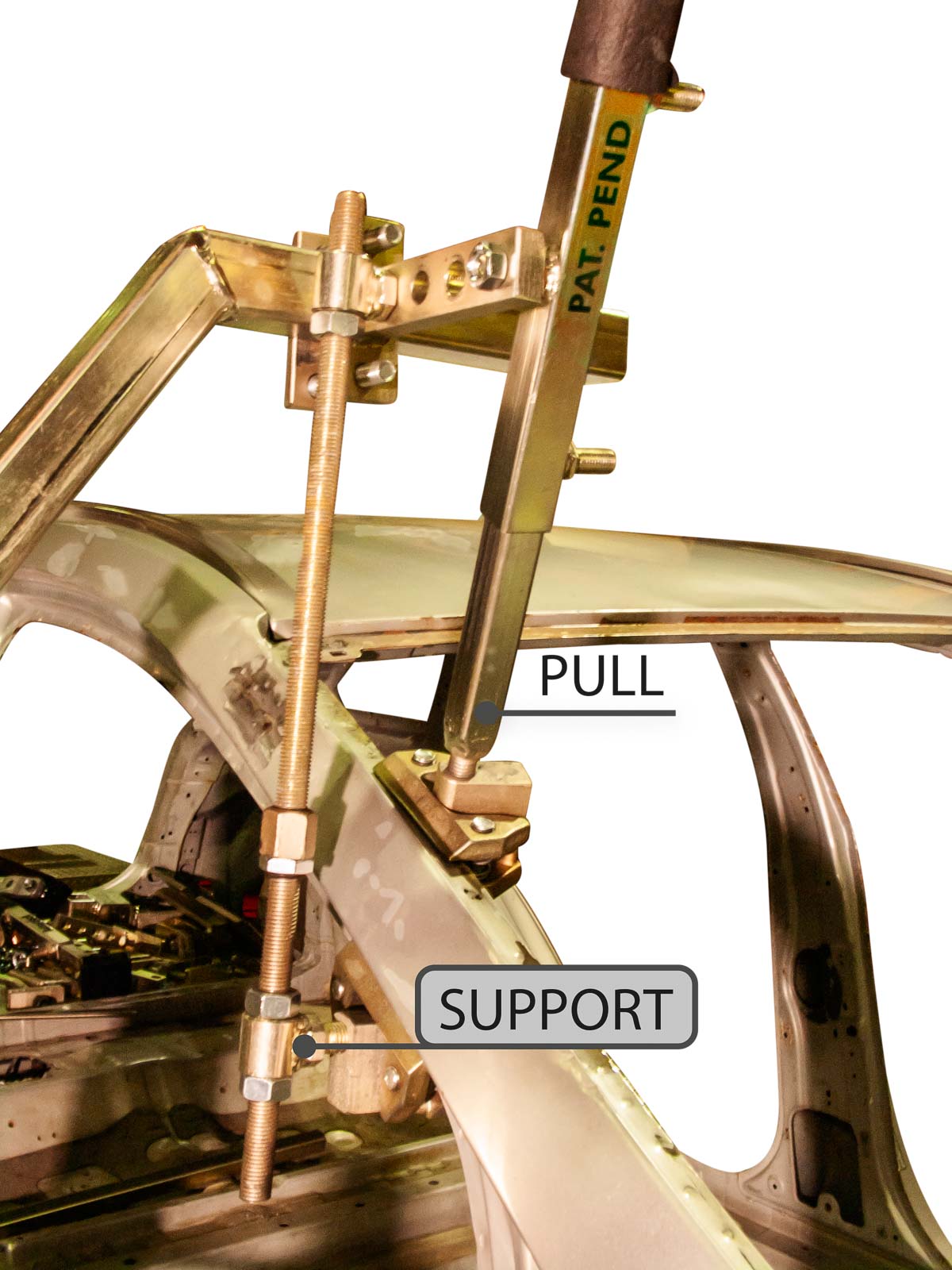

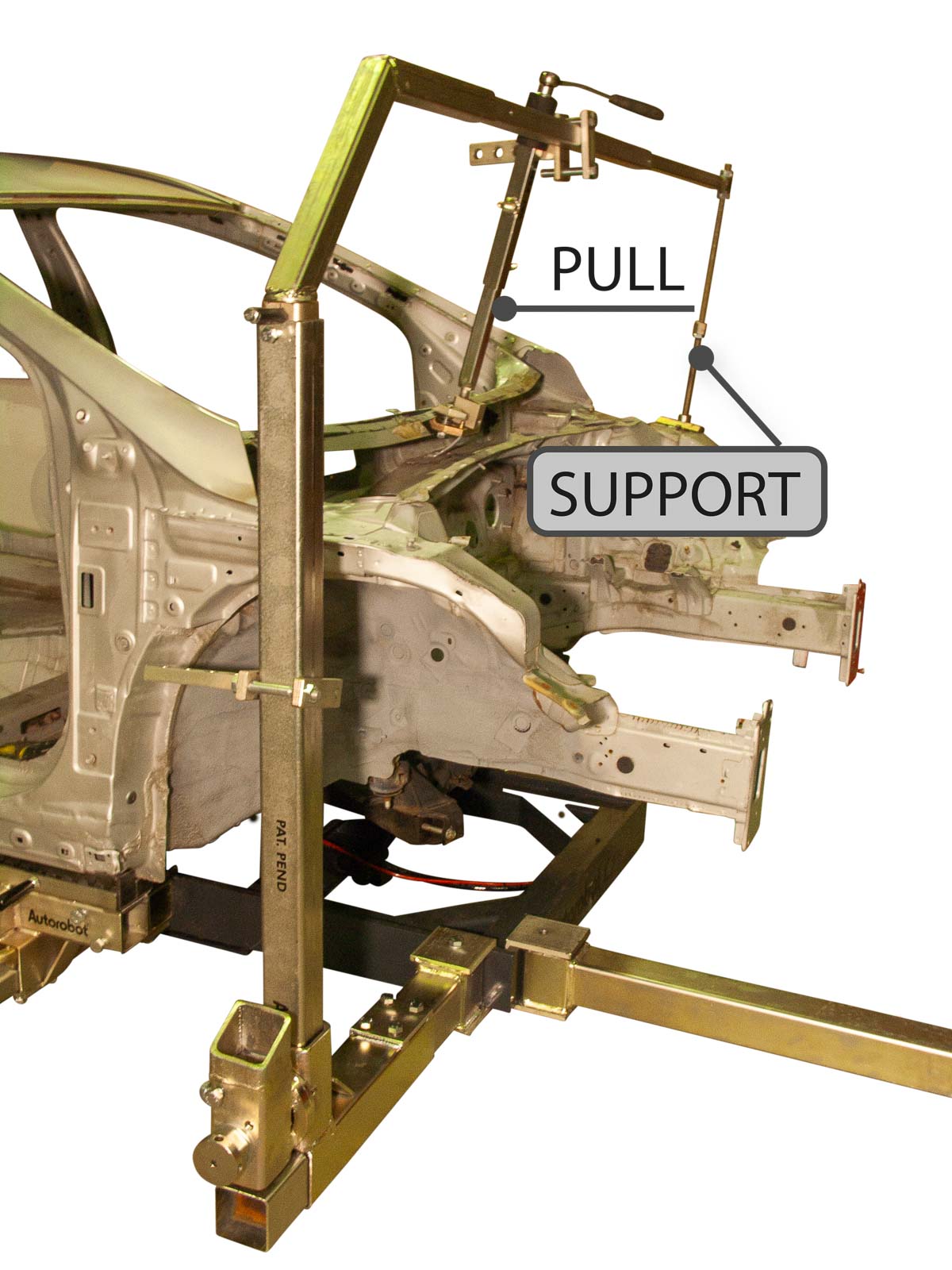

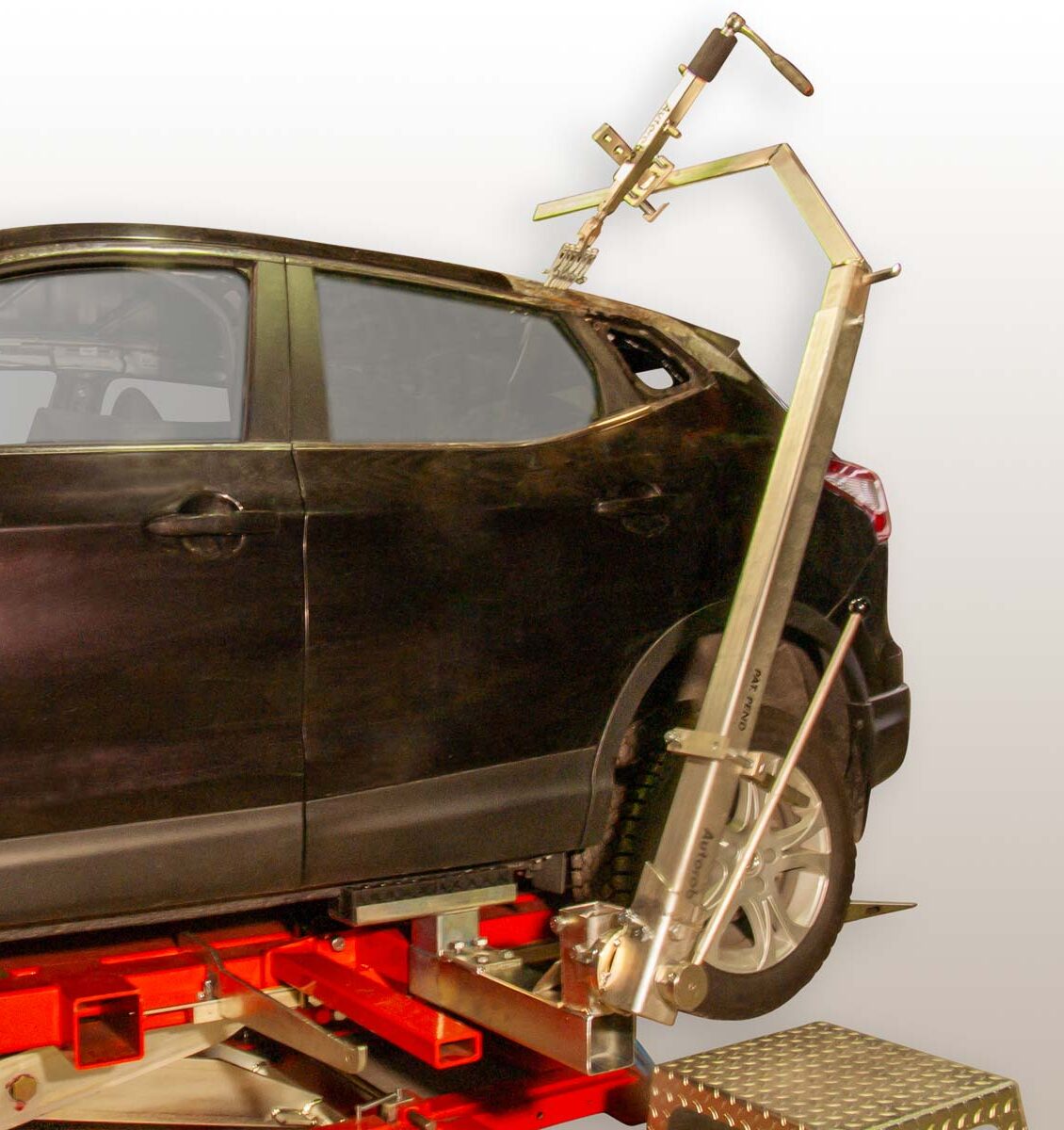

Straightening roof structures

Straightening roof structures

SET B

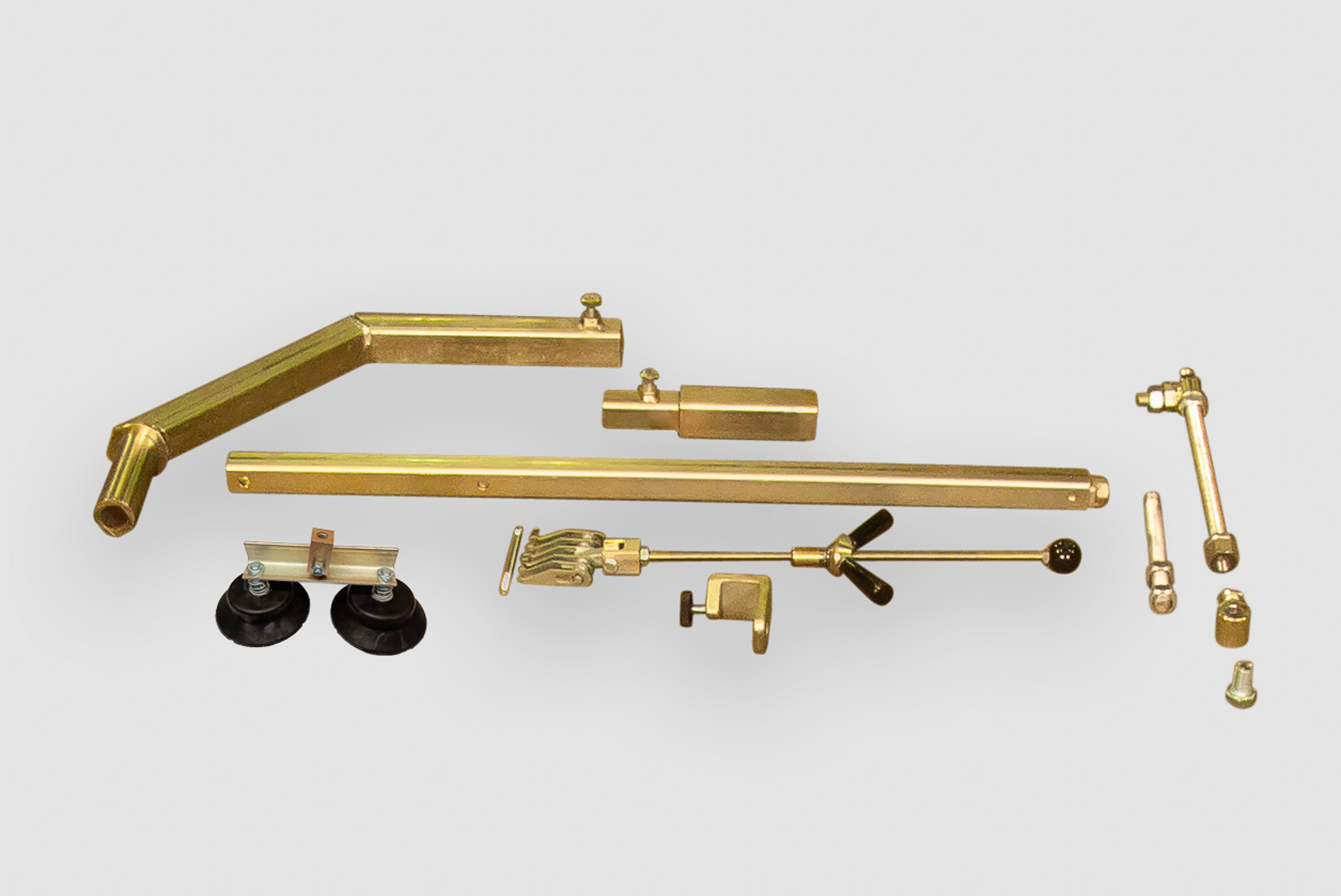

Set B is an additional set for designed specifically for straightening car roofs and glass mounting panels. It includes a turning quick pull column that covers almost the entire roof structure area. Straightening can be performed both vertically and at an angle, as shown in pictures. Additionally, the set enables precise straightening of car glass mounting panels and vertical sill structures.

Setti B

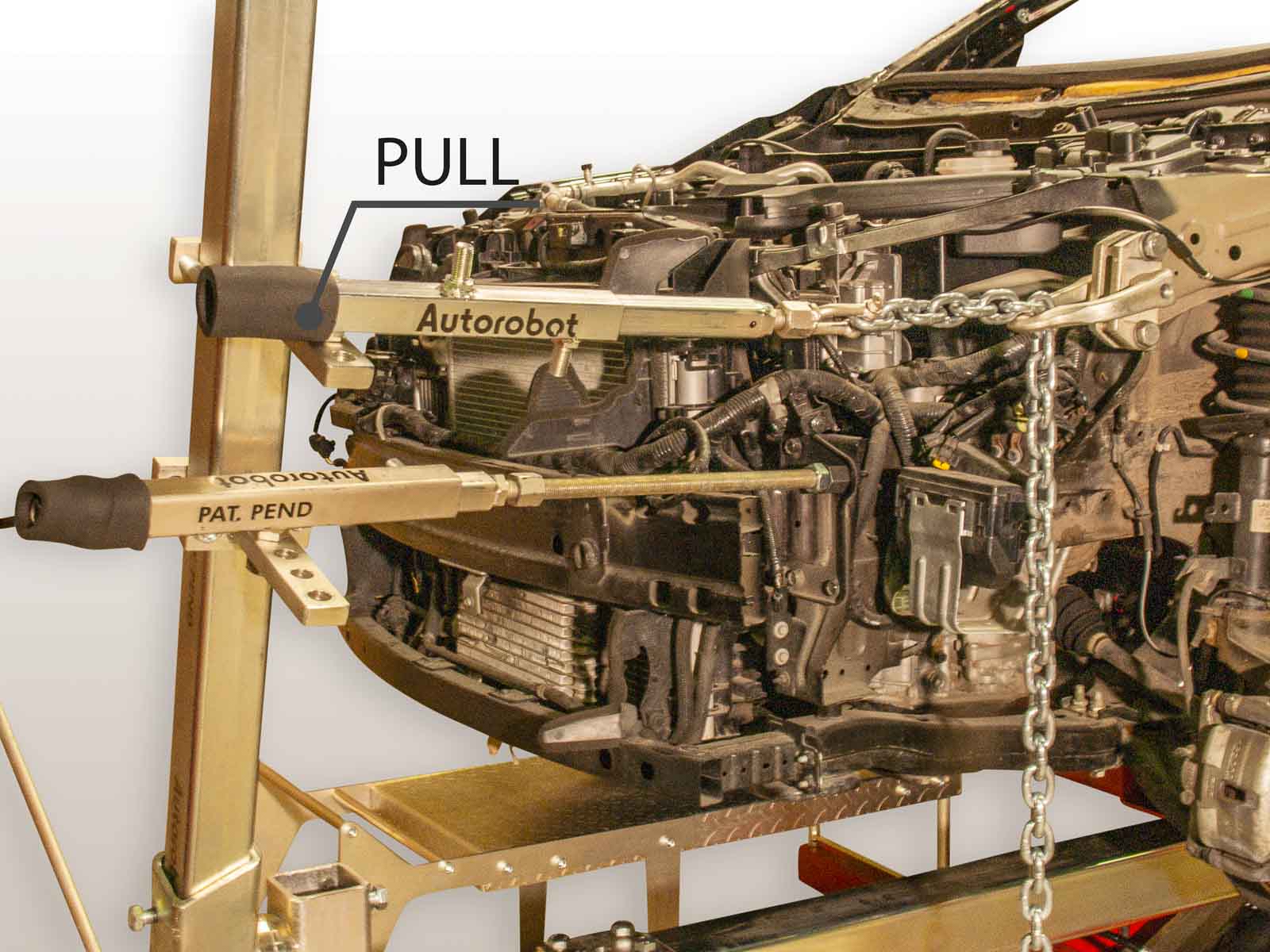

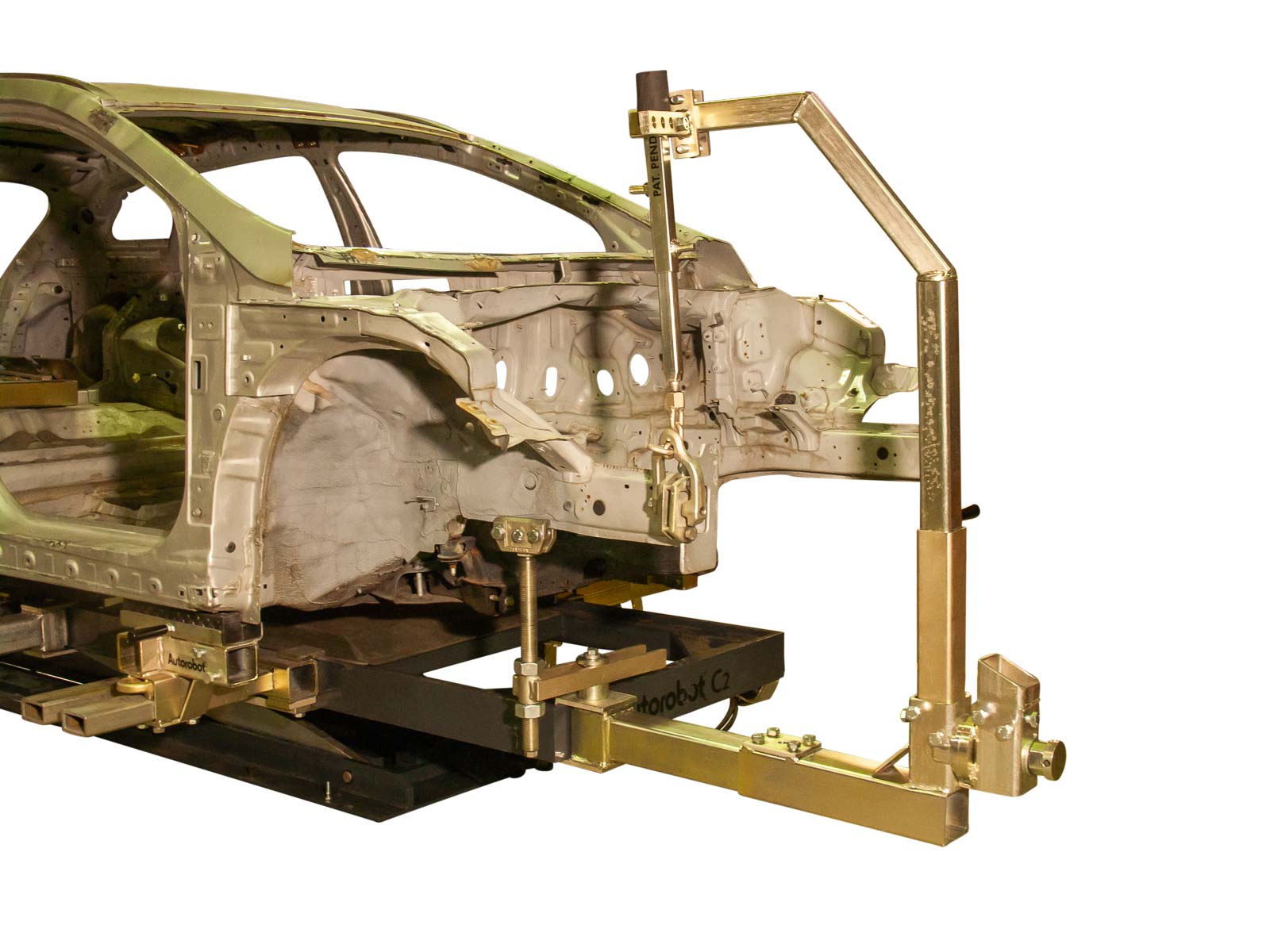

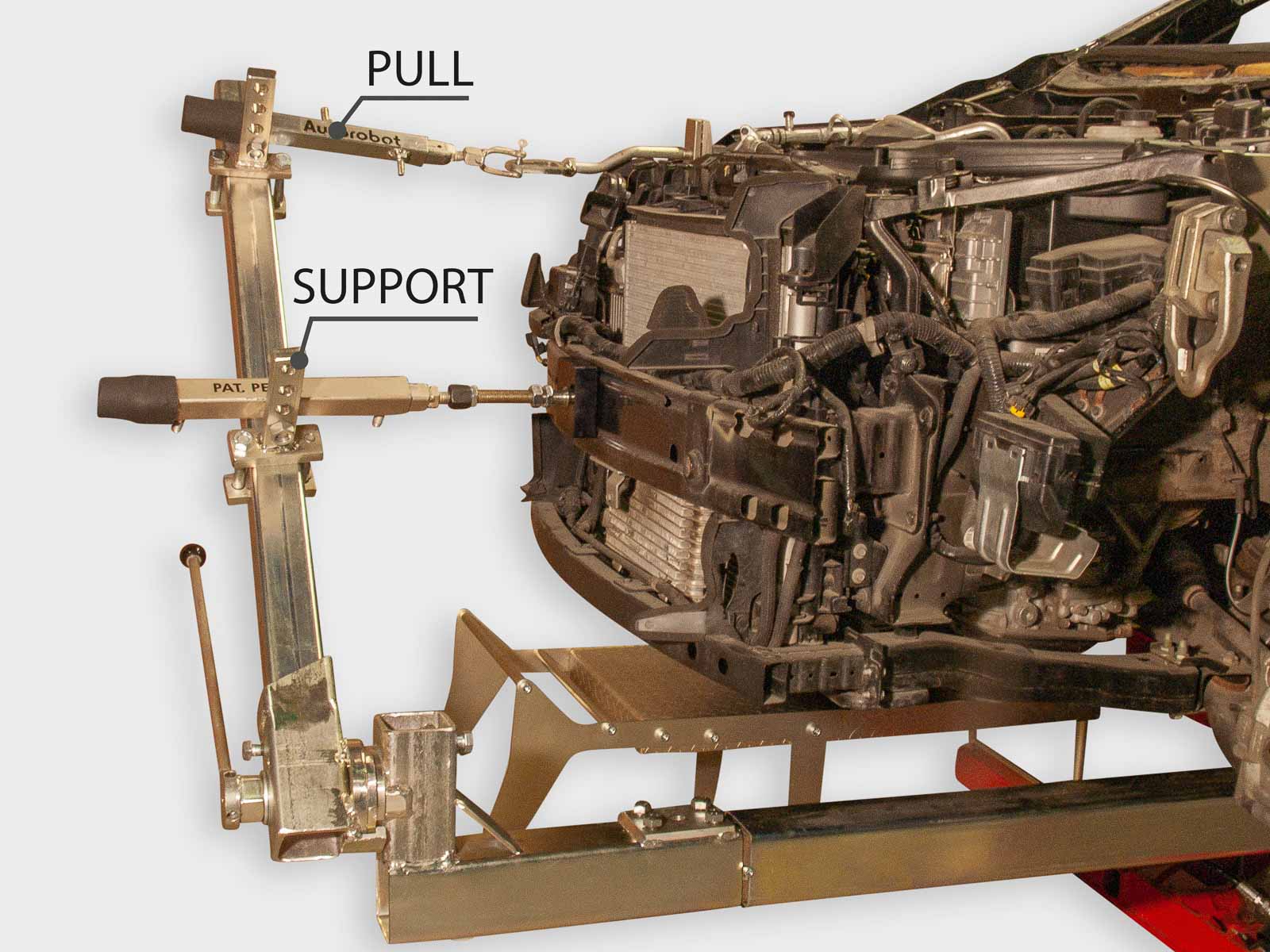

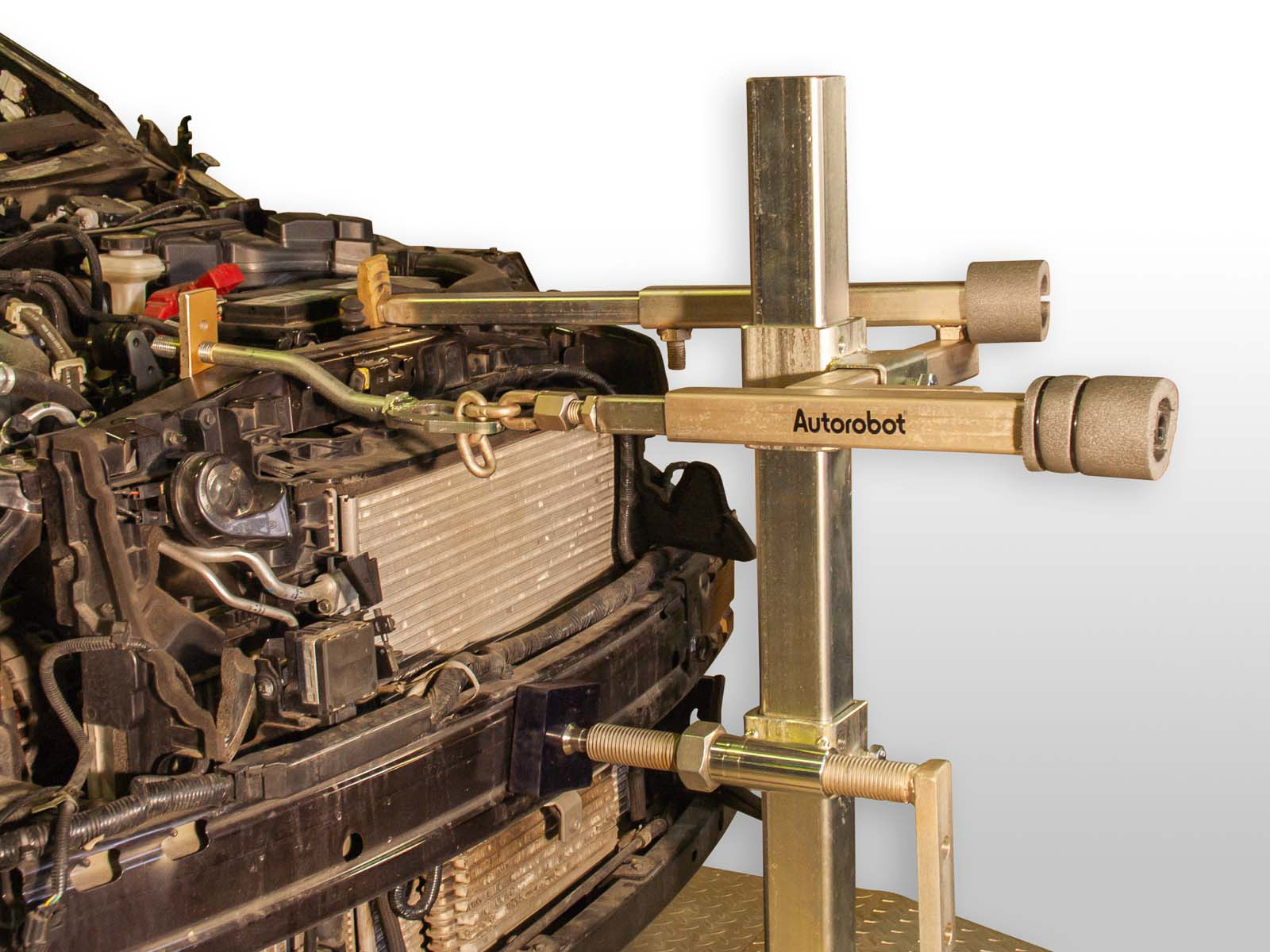

Straightening the front of the car

Straightening the front of the car

SET A

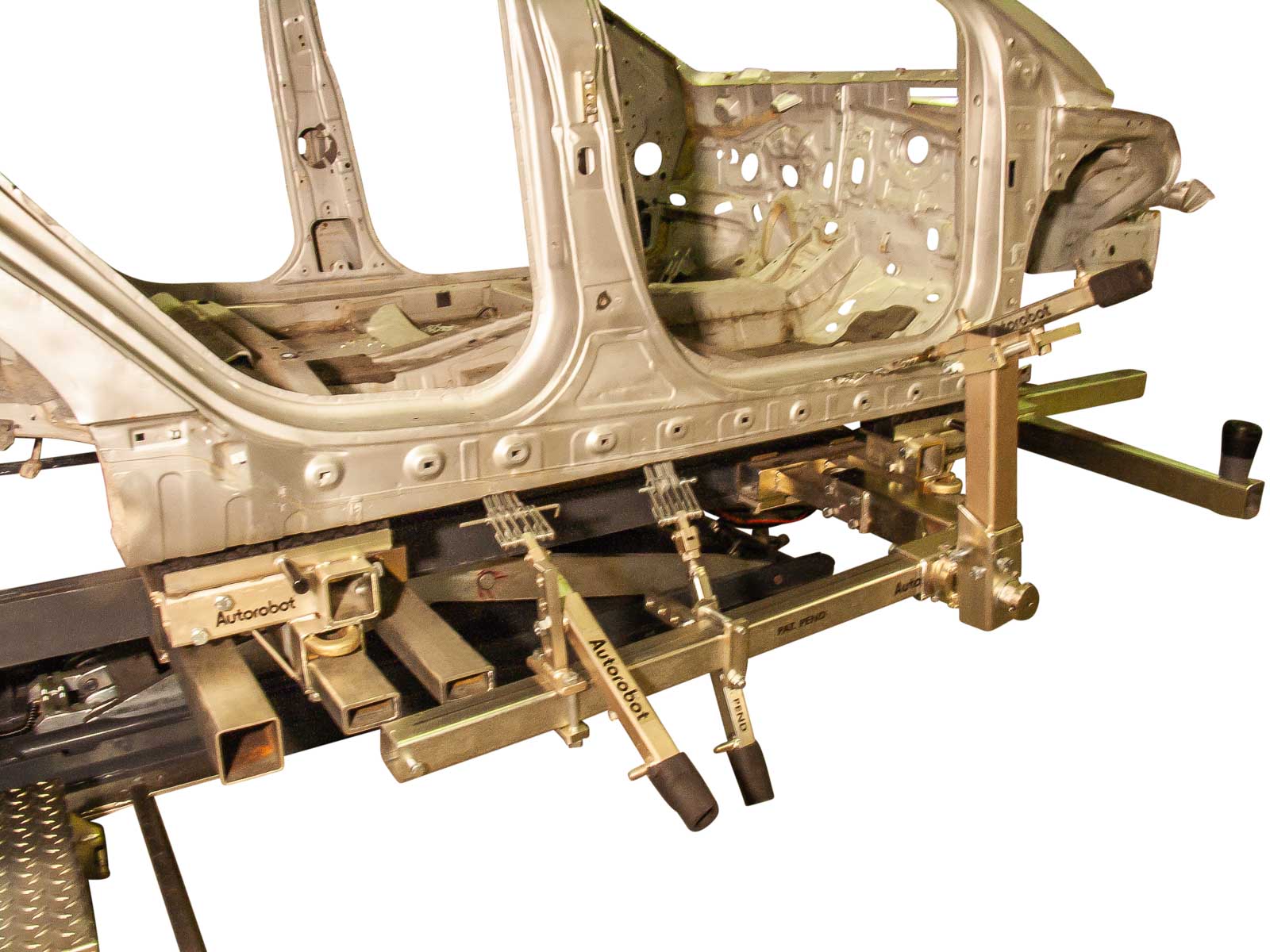

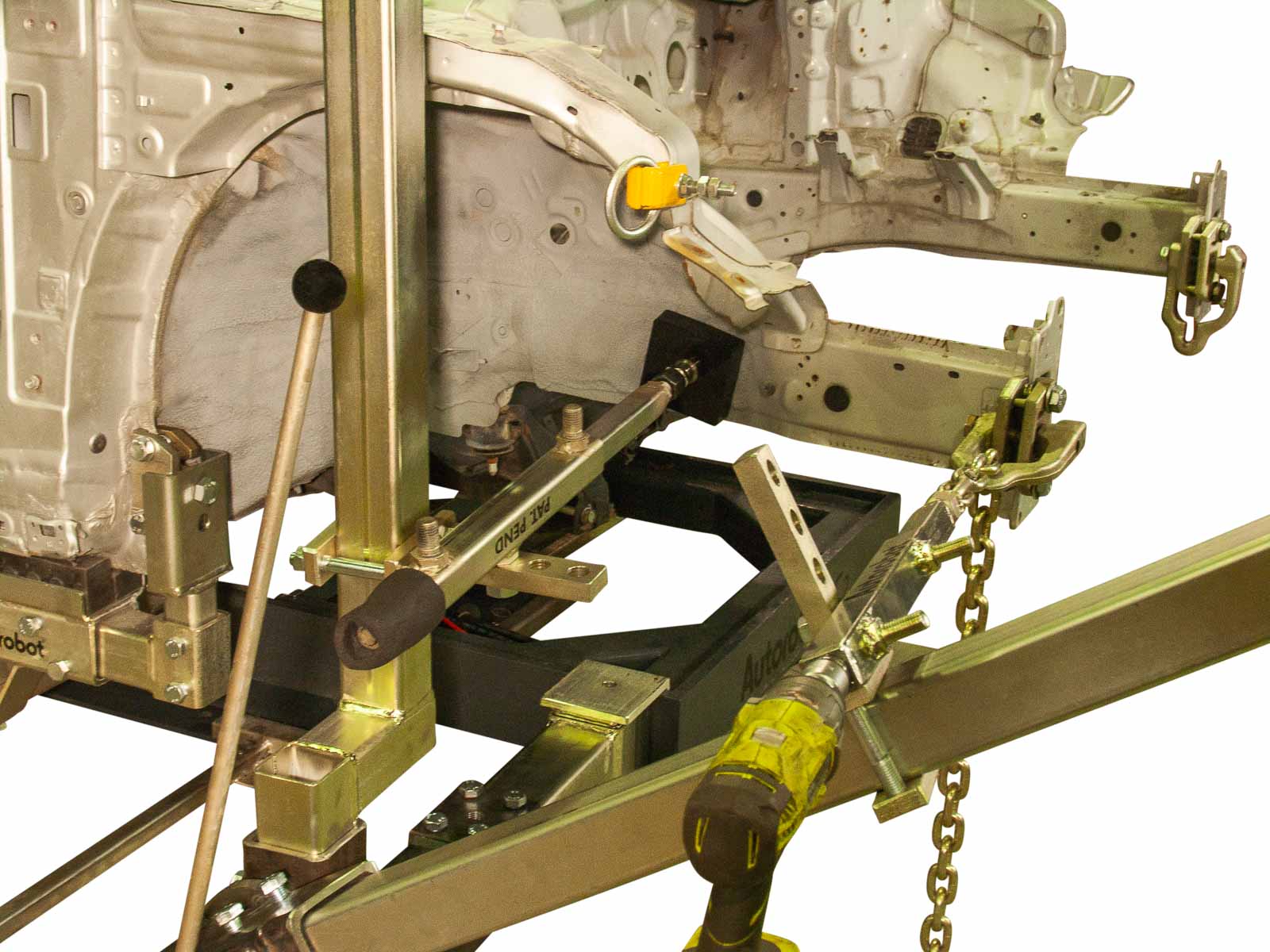

Straightening the chassis structures

Straightening the chassis structures

SET B AND C

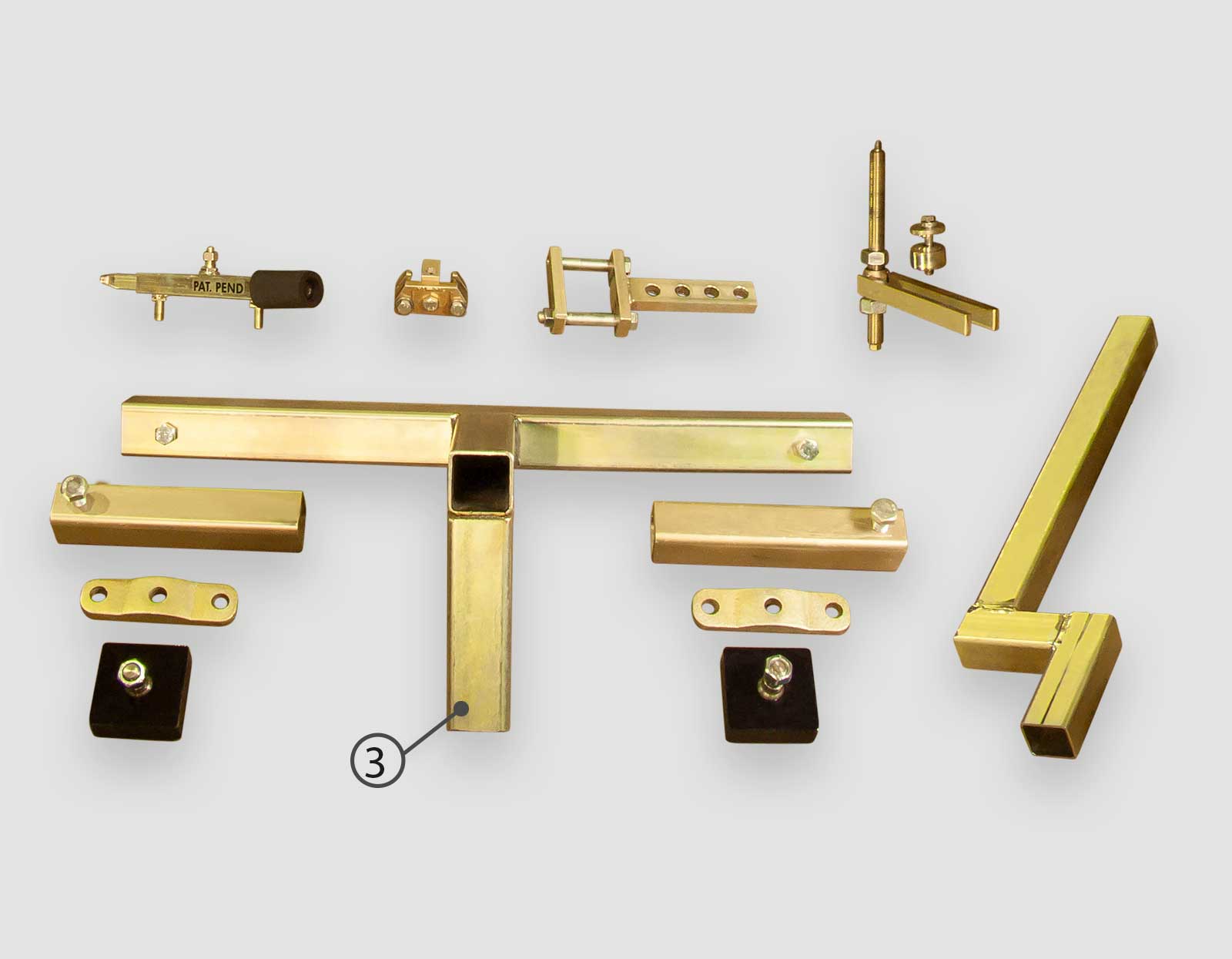

Set C is an additional set for intended for more demanding vehicle straightening tasks. Using beam the counter-support is directed to the ends of the car’s chassis beams. Beam adds features such as focusing counter-support on the fold points of the chassis.

Quick pull column Brochure (PDF)Download

Set C

Sets of quick pull column

Set A
Straightening the front, rear and side structures of the car
Set B
Additional set for straightening
car roofs and glass mounting panels
Set C
Additional set for demanding car straightening
